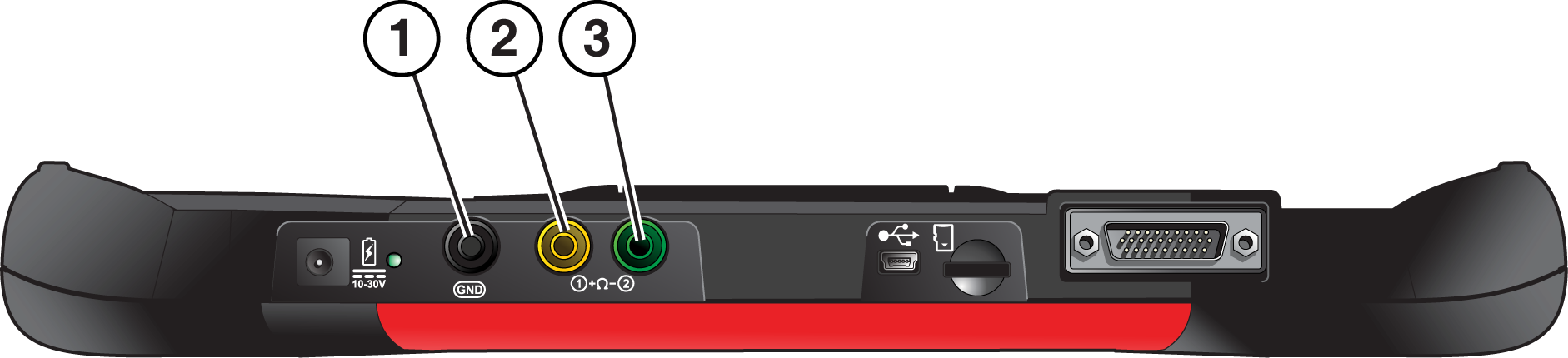

Standard “safety type” test lead jacks are located on the top of the diagnostic tool, and are compatible with many test leads and probes . Insert the applicable test lead or probe terminal end into the jack to compete the connection.
To avoid damaging test leads, do not pull on the wire when removing the leads from their jacks. Pull only on the lead terminal end.
| 1. | Ground Jack (Black) |
| 2. | Channel 1 Jack (Yellow) |
| 3. | Channel 2 Jack (Green) |
